Automatic one –to –two outer mask production equipment : one set mask machine is connected with two mask ear belt welding machines. After the mask body is made, the conveyor belt is sent to the ear belt welding machine for ear belt welding.It can complete a complete ear mask, and only one operator can operate the whole production line. The production line realizes the full automatic production of plane mask, mainly including coil feeding, folding and pressing, nose rib feeding, mask shaping, mask cutting, ear feeding and welding, finished product cutting and other processes. The Complete whole production process from raw materials to finished mask. The mask is comfortable to wear, no pressure, good filtering effect, can be used in health care, electronics and other industries.

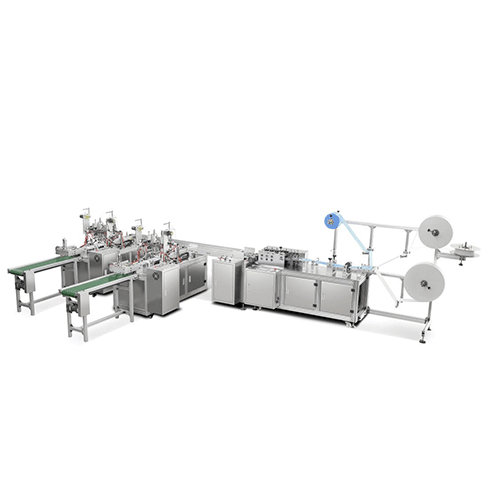

PRODUCT PHOTO:
Installation and configuration requirements：

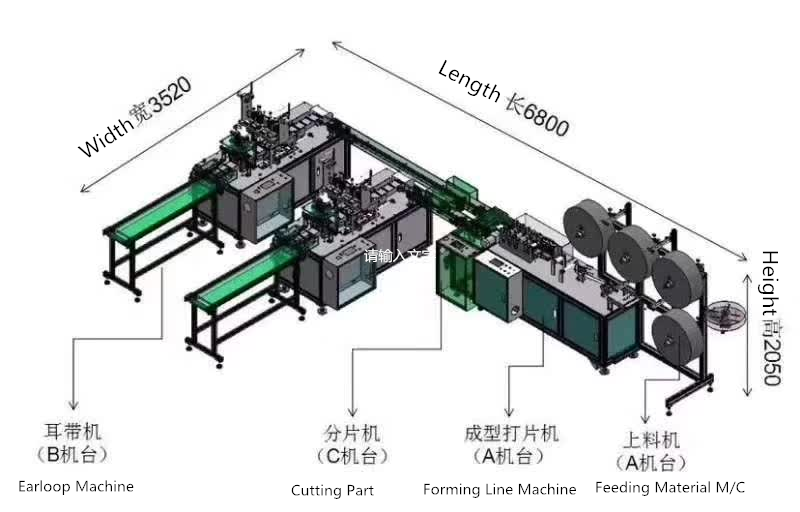

1. Machine Size：approx L6800mm X W3520mm X H2050mm
2. Machine Color：RAL9001
3. Machine Weight：1500kgs; The ground bearing≤500kg/㎡
4. Work Voltage： 220VAC±5%，50HZ，Power:10KW
5. Compressor Air：0.5-0.7 Mpa; Service flow contract :300L/min
6. Operating environment: temperature 10-35℃, humidity 5-35%HR, no inflammability, no corrosive gas, no dust (cleanliness not less than 100,000)
Production capacity of equipment：
1. Production efficiency：120-140pcs/min
2. The equipment produces a pass rate：99%（(the incoming materials do not meet the requirements, except when the staff improper operation）
3. Equipment Failure Rate：2% (refers to the fault caused by the equipment itself)
Production Specification：
The Standard：175X95mm
