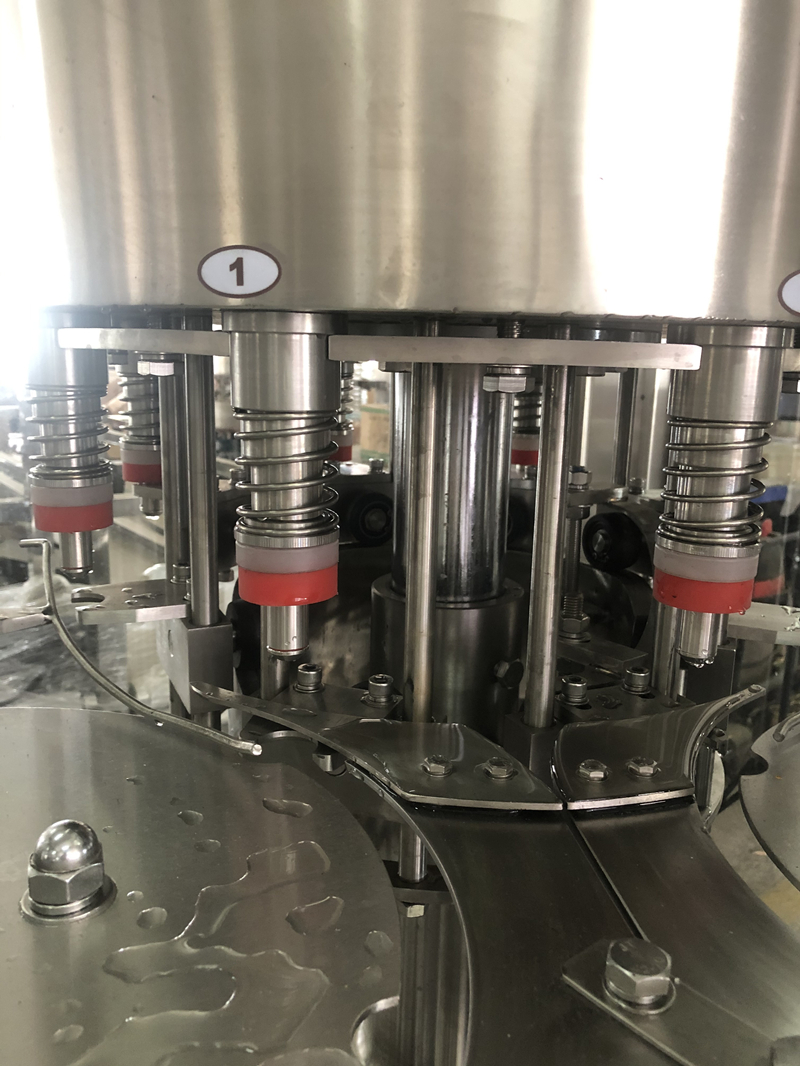

DL8-3-3 washing, filling, capping machine with shrink tunnel
Model | DL8-8-3 washing, filling, capping machine |
Capacity(0.5) | 2000bph |
Washing heads | 8 |
Filling heads | 8 |
Capping heads | 3 |
Power | 2.2kw 380v |

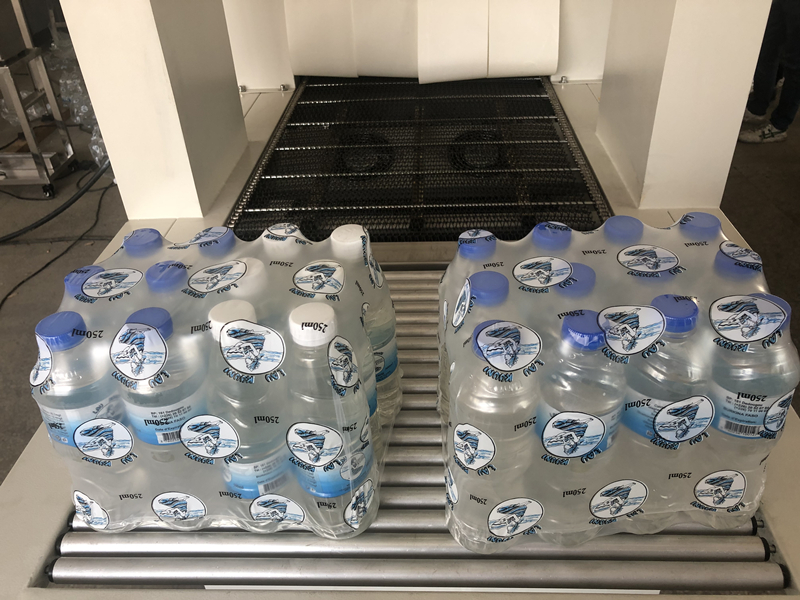

Model | BSS-2000 shrink tunnel |
Capacity | 2000-5000bph |
Tunnel size | 1000*150*350mm |
Steam consumption | 24KGS/h |
Steam pressure | 0.1-0.4Mpa |
Power | 9kw 220v/380v/50hz |
Main Technical Parameters
Production speed:
Standard label length: 100mm, production speed varies with clients’ needs; standard speed is 100bottle/min(depends on 500ml bottles.)
Shorter are M labels, faster is the production speed.
Applicable Diameter of Bottle Body: Ф28 mm-Ф125mm
Applicable Length of Label: 30 mm ~ 250mm
Applicable Thickness of Label: 0.03 mm ~0.13 mm
Applicable Materials of Label: PVC、PET、OPS
