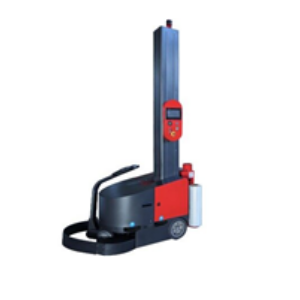

CTP-600 Pre-stretch self-walk wrapping machine/robot wrapping machine

CTP-600 Pre-stretch self-walk wrapping machine/robot wrapping machine CTP-601 Anti-stretch self-walk wrapping machine//Mobile Pallet Wrapper
Battery charger and battery indicator
The diameter of the detecting wheel is 320mm
Soft start +emergency stop +robot speed adjustable
Film carriage is driven by chain
Sensor detect the pallet height
With rising and falling program
Top and bottom layers adjustable
Model	CTP600	CTP601
Around Speed(m/min)	90m/min	90m/min
Max Pallet Size(W*Lmm)	∞	∞
Min.Pallet Size(W*Lmm)	600*600	600*600
Max wrapping height	2400mm(optional 2800mm)	2400mm(optional 2800mm)
Film strech(%)	300%&230% two step change by handle (250%and 200% option)	Mechanical stretch
Film tension	Adjustable	Adjustable
Elevator Unit speed	Adjustable	Adjustable
Max.film spec.	∮250mm	∮250mm
Machine size	1906×1225×2943mm	1906×1225×2943mm
Machine net weight	430kg	410kg
