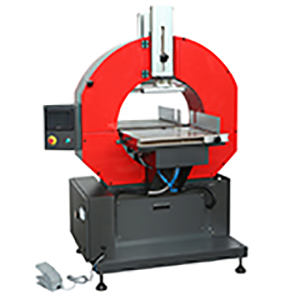

CTR-201 Horizontal stretch wrapping machine

Soft start/stop, Automatic home position, PLC control, reliable performance, easy operation. Automatic put on film ,break film ,stick film and realize unmanned working

Charging source

1P, AC220/110V, 50/60 HZ

Running power

DC 24 V

Battery

120Ah

Qty of packaging

200～300 pallet/ every charge

Running time

battery charging every 7h

Machine moving speed

90 meter/min

Max pallet size(width * length)

∞

Max wrapping height

2400mm(optional:2800mm)

Packing material

width≤500 mm, out dia.≤Φ250 mm LLDPE film

Optional accessory

remote –control

Noise

≤ 75DB

Surrounding

humidity≤98%, temperature -10℃～40℃

Lubricant material

common lubricating grease
