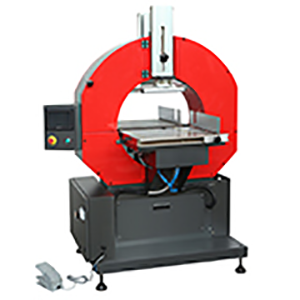

CTR-301 Horizontal stretch wrapping machine

Soft start/stop, Automatic home position,PLC control, reliable performance, easy operation. Automatic put on film ,break film ,stick film and realize unmanned working

Power Press

1P, AC 220/110 V, 50/60 HZ

Rotary speed

100rpm

Drive method

drive with belt

Tensioning adjust

friction (adjust by hand)

Round wrapping capacity

Φ102～Φ330 mm

Square wrapping capacity

①.Min. Width 102 mm, ②.Max Width 560 mm ③.Min Height 50 mm, ④ Max. opposite angles 530 mm

Packing Film Width

①.76 mm(3”), ②.102 mm(4"), ③.127 mm(5”)

Packing film Dia

①.inner coreΦ76 mm, ②.out dia. Φ100 ~ Φ200 mm

Noise

≤75 DB

Optional accessory

remote –control

Noise

≤ 75DB

Surrounding

humidity≤98%, temperature -10℃～40℃

Lubricant material

common lubricating grease
