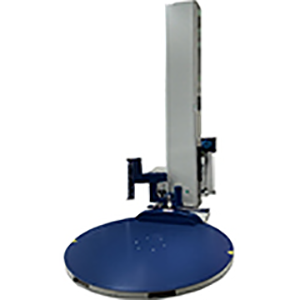

MH-FG-2000F Automatic  Pallet  stretch Wrapper

With Remote Control

Automatic contact and break film, Soft start/stop, home position,PLC control, reliable performance, easy operation
Sensor test pallet height

*Power Voltage

1 P  AC 220/110V  50/60 Hz

*Air-pressure

0.4～0.6 MPa,

*Speed of turntable

0~10prm

*Dia.of turntable

Φ 1650mm （optionalΦ1800/Φ2000）

*Mast height

2400mm （optional 2000/2700/3000/3200/3400）

*Packing material

LLDPE film, width<=500mm,out diameter<=280mm

*Capacity

2000 kg

*Max wrapping height

=mast height-400mm

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Lubricant material

Common lubricating grease
